Split upper grapple
Two separate upper sections grip uneven loads of brush, logs, limbs, and cleanup material.
All attachments
Split top1 / 4
Split top1 / 4 Up to 60 HP

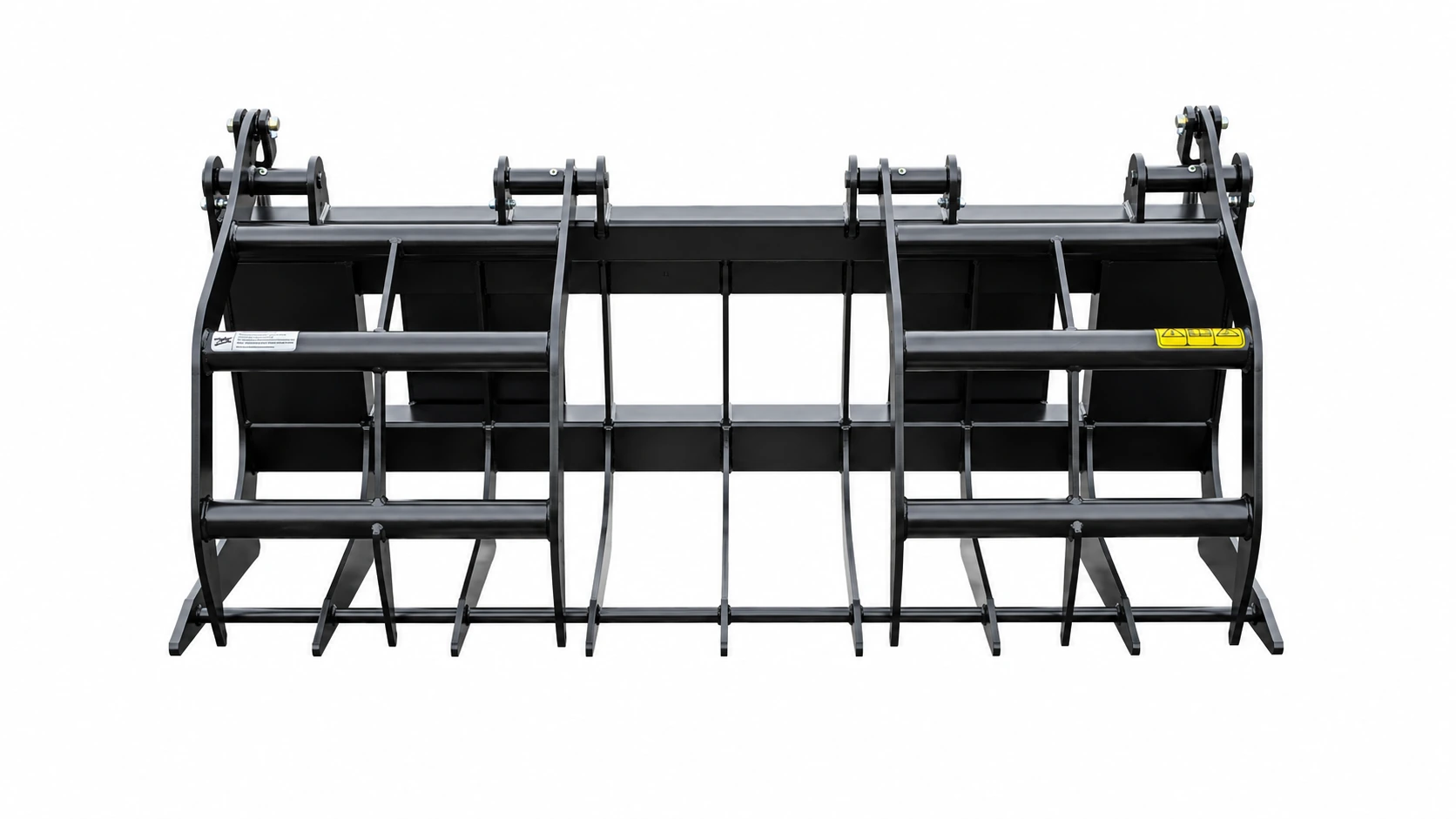

UT60-S
Split top Utility Grapple
The UT60-S uses two separate upper grapple sections to grip uneven brush, logs, and cleanup material. Its flat-bottom rake pairs AR400F tines with 8-inch tine spacing and two 2-by-6-inch hydraulic cylinders. Choose a 59-, 68-, 76-, or 84-inch width for machines up to 60 horsepower, then ANBO confirms the mount, loader capacity, and hydraulic connections.
Split top8-inch tine spacingAR400F tines
Configure your UT60-S
Choose your width.
Every UT60-S uses 8" tine spacing. Select the overall width that best matches your machine.
Selected configuration
ModelUT60-S
Tine spacing8"
Overall width59"
Attachment weight350 lb
SKUUT60S-8-59
Current listed MSRP$4,840
Final price depends on the mount and confirmed machine fitment.
Match the width to your machine. ANBO will confirm the carrier, mount, and final configuration before the attachment is built.
Request This Configuration Built for the job
Purpose-built performance.
A split-top utility grapple with two upper grapple sections and AR400F tines for uneven brush and log loads on machines up to 60 horsepower. Every final build is matched to the machine and work ahead.
AR400F tines
Half-inch outer tines and 3/8-inch inner tines form the flat-bottom rake. The split top adds half-inch inner hinge tines.
Hydraulic grip
Two 2-by-6-inch cylinders power the grapple sections, with cylinder guard plates and a hose channel protecting the hydraulic components.
Machine-matched build
ANBO confirms the mount, hydraulic routing, and couplers for your machine before production.
Final fitment matters
Your machine decides the final build.
- Machine make and model
- Loader lift capacity and geometry
- Mount type and hydraulic connections
- Preferred 59-, 68-, 76-, or 84-inch width
