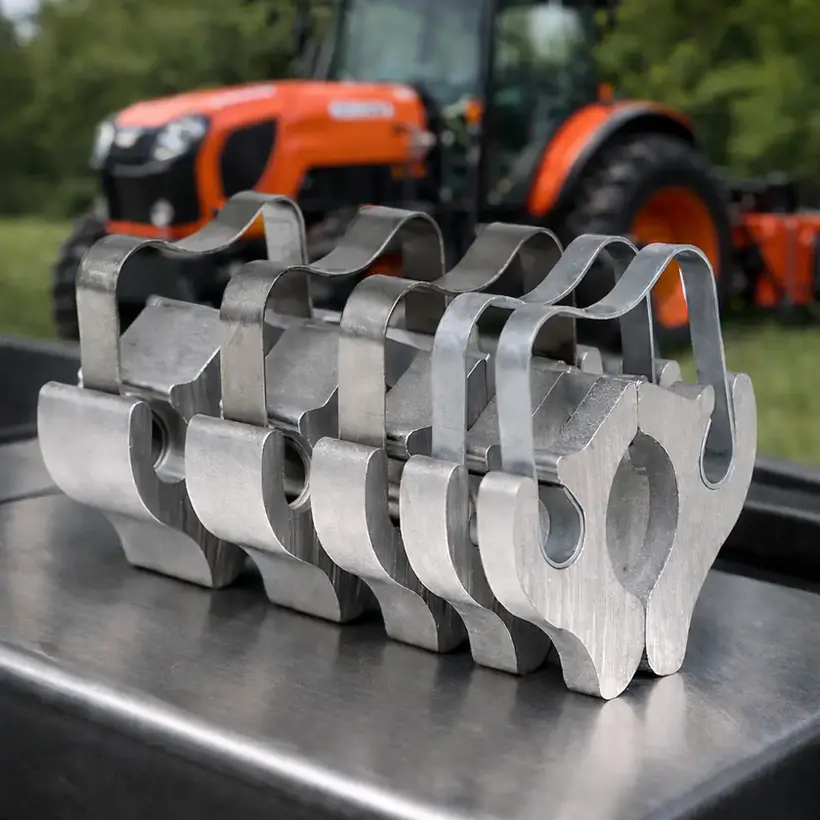

Hydraulic Cylinder Stroke Control Blocks
Heat-treated aluminum blocks that limit cylinder retraction to a repeatable position.
Stroke control blocks adjust the usable stroke of a single- or double-acting hydraulic cylinder. ANBO kits use high-grade, heat-treated aluminum alloy and are offered for common shaft ranges and adjustment widths.
Product overview
Built around the work.
These published details are a starting point. ANBO confirms the machine, connection, application, and final configuration before the attachment is ordered.
Repeatable position
Limit cylinder retraction so an implement can return to a consistent working position.
Two shaft ranges

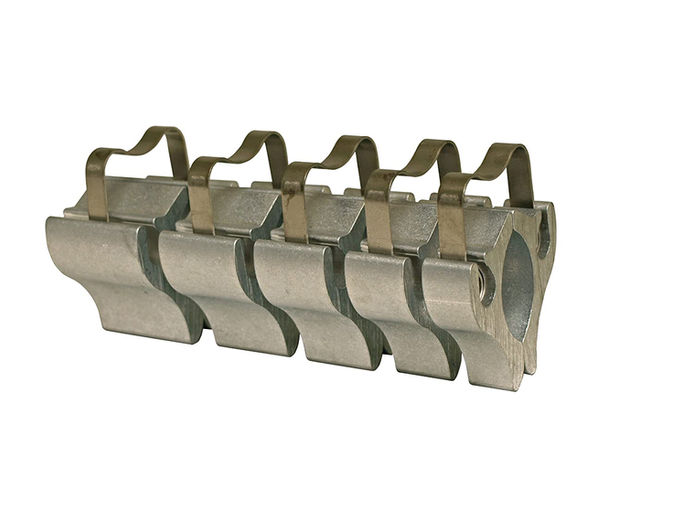

A-series kits fit 1- to 1-1/2-inch shafts; B-series kits fit 1-1/2- to 2-inch shafts.
Standard and farm sets
Standard kits provide smaller increments, while Farm kits cover larger adjustment widths.
Hydraulic or air use
The listed kits can be used on hydraulic or air-operated cylinders when properly sized.
Available kits
Choose the shaft range.
Measure the cylinder shaft diameter first, then choose the standard or Farm set based on the adjustment widths you need.
Fitment comes before production.
Confirm the right configuration.
